Filter Kit B – Rainwater Harvesting
- Description

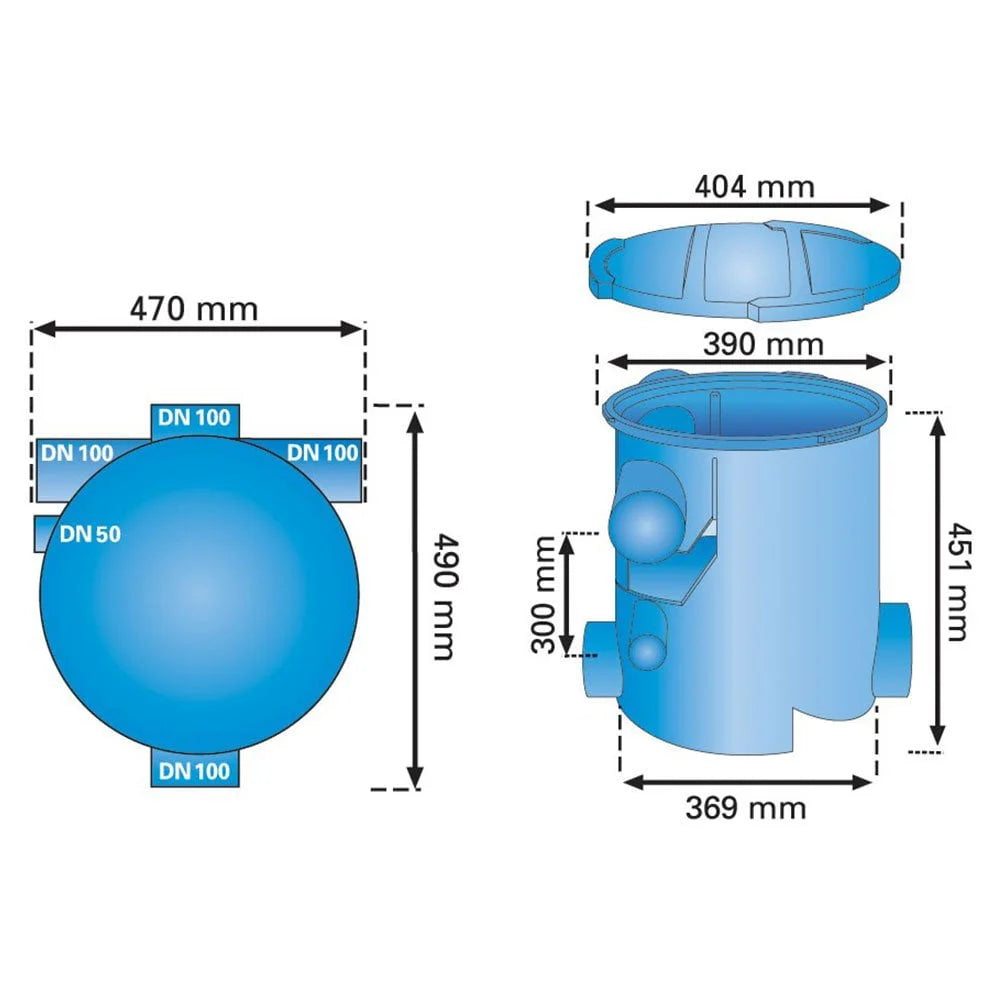

Filter Kit B is designed for roofs with a maximum area of 450m² and includes a two-stage rainwater filter unit, siphon overflow, and calmed inlet.
Upon entering the filter, water initially passes through the first cascade to remove larger debris particles. The pre-filtered water then proceeds through the secondary sieve filter (mesh size 0.65 mm), which effectively captures any remaining debris.
The filtered water, now clean, enters the tank through a calmed inlet, ensuring minimal turbulence and preserving sediment at the tank bottom undisturbed. This method of rainwater entry also oxygenates the water, preventing anaerobic decomposition.
To further enhance water quality, the overflow siphon incorporates a skimming inlet, removing additional debris, oils, and floating contaminants from the water's surface.
Features:
- Designed for roof sizes up to a maximum of 450 sq metres (per kit)
- Two step cleaning system independent of flow rate ensuring high filtering efficiency
- Filter cartridge location assists continuous removal of dirt
- Frost resistant
- Self-Cleaning and low maintenance
- Filter insert easily removable for cleaning
- Suitable for 110 mm (4”) downpipes
- Filter unit weight 6.2 kg
- Siphon overflow with skimming inlet
- Siphon overflow pipe to fit a 130 mm hole in storage tank wall
- Calmed inlet to prevent incoming water disturbing any sediment in tank
- Calmed inlet also ensures fresh water is supplied to lower area of the tank resulting in complete and regular replenishment of stored water
- Wall bracket not included
